Stainless Steel Fire Rated Lever Handle with EN1906
The SS4003 U-shape Lever Handle combines a spring-loaded mechanism and a double-curved design with a fine satin finish to prevent accidental snags and provide superior tactile comfort, in full compliance with EN 1906 and EN 1634-1.
With over a decade of expertise in architectural hardware, DIROCK is a specialized supplier of European-standard fire-rated hardware solutions.
Our manufacturing system is certified to ISO 9001 (Quality), ISO 14001 (Environment), and ISO 45001 (Occupational Health & Safety) standards, ensuring full traceability and consistent excellence from raw materials to finished products.
Technical Specifications
| PRODUCT DETAILS |
|---|
| Design Style |
EUROPEAN |
| Application |
Public buildings |
| Type |
SS4003 |
| Feature |
Fire rated |
| Category of use |
Grade 3 |
| Handle |
SS304 , Thickness: 1.0mm |
| Trim plate |
SS304 , Thickness: 0.8mm |
| Baseplate |
Iron，Thickness: 1.2/1.5mm |
| Core |
Brass |
| Spindle |
8*8mm |
| Standard |
EN1906 DIN18255 DIN18273 |
| EN 1906 |

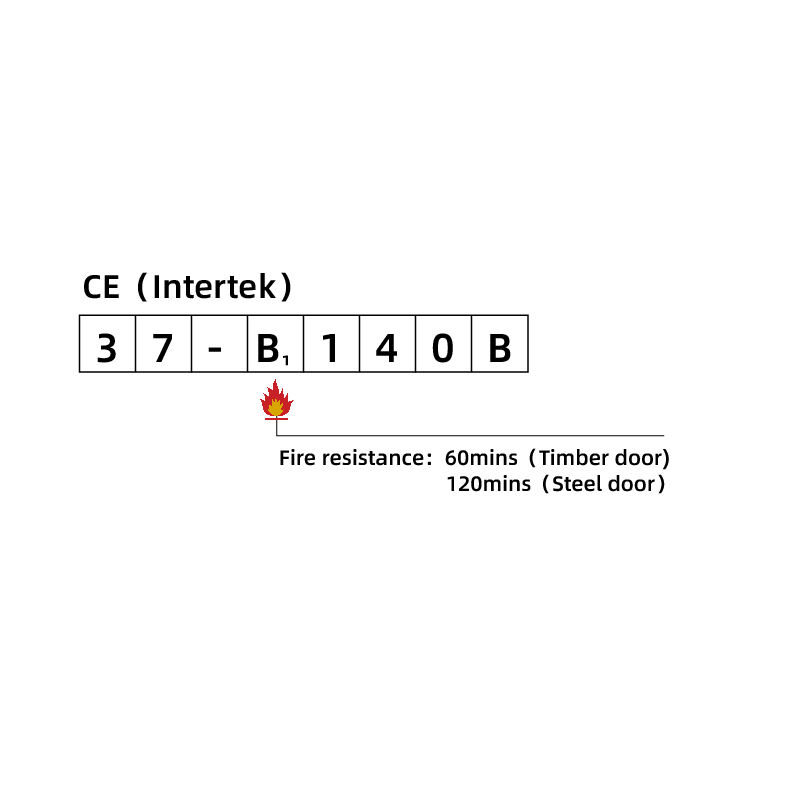

3 7 - B1 1 4 0 B |
| Fire test (EN 1634-1) |
60mins(Timber door); 120mins(Steel door) |
| Production Capacity |
100,000 per month |
| After-sale Service |
Other |

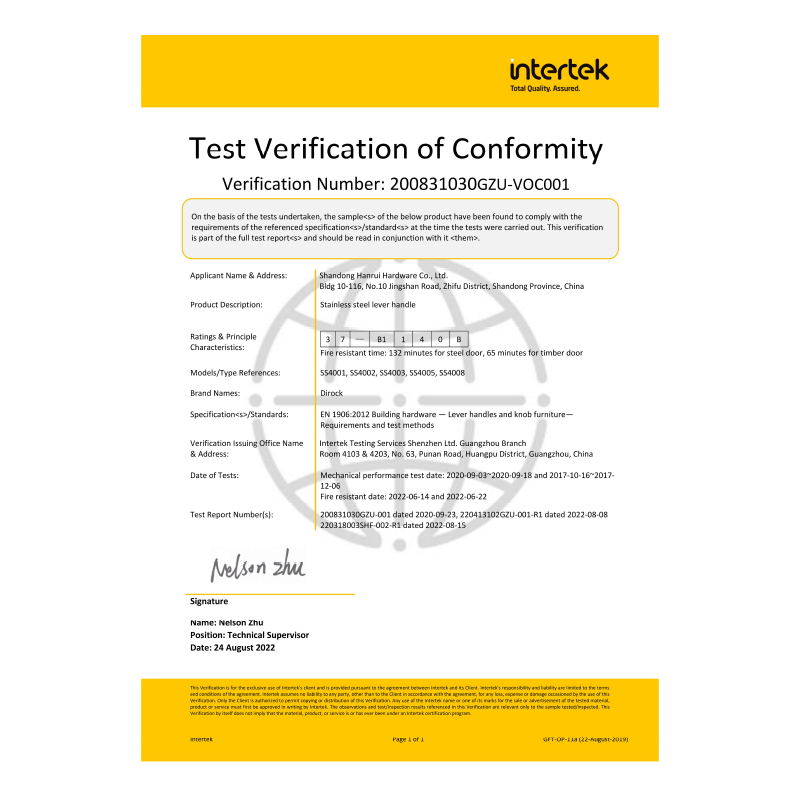

Tested for durability, corrosion resistance, and fire resistant door compatibility by Intertek , this lever handle is compliant with EN 1906, DIN 18273, DIN 18255 and EN 1634-1 requirements for mechanical and fire performance, ensuring reliability in high-frequency of use by public.
Exceptional Durability: Manufactured from 304 stainless steel, proven by a 200,000-cycle test, and coupled with a Grade 4 corrosion resistance (240h), the handle delivers exceptional durability and powerful corrosion resistance in demanding environments.
Flexible Compatibility: Compatible with standard European mortise lock. OEM customization is supported with options such as selectable backplate thickness and multiple surface finishes.
Versatile Applications: Engineered for installation on both timber and steel fire doors, and suitable for high-traffic architectural environments such as transportation hubs, hotels, educational facilities, and commercial circulation areas. Its modern aesthetic and durable construction ensure dependable performance across diverse project requirements.
