EN1303 Standard 70mm Brass Double Profile Cylinder for Fire Doors
The Double Profile Cylinder is engineered for professional building projects, combining superior fire resistance and long-term durability in compliance with EN 1303 standards.
With over a decade of expertise in architectural hardware, DIROCK is a specialized supplier of European-standard fire-rated hardware solutions.
Our manufacturing system is certified to ISO 9001 (Quality), ISO 14001 (Environment), and ISO 45001 (Occupational Health & Safety) standards, ensuring full traceability and consistent excellence from raw materials to finished products.
Technical Specifications
| PRODUCT DETAILS |
|---|
| Design Style |
EUROPEAN |
| Application |
Public buildings |
| Type |
Double profile cylinder 60-95mm |
| Feature |
Fire rated |
| Category of use |
Grade 1 |
| Main material |
Brass |
| Key |
Brass/ Cupronickel |
| Cam |
Sintered steel, R15*6.5 |
| Movable Detainer |
Brass, 5/6 pcs |
| Spring |
SS 304 |
| EN 1303 (Intertek) |
1 6 0 B 0 C 6 0 |
| Fire test (EN 1634-1) |
60mins(Timber fire door) |
| Production Capacity |
100,000 per month |
| After-sale Service |
Other |
Tested and verified by Intertek through the Test Verification of Conformity, this brass cylinder meets the mechanical and fire performance of EN 1634-1. Equipped with 5 or 6 pins to ensure a low keying variation rate, it also features a 30° offset cam design for reinforced security.
Exceptional Durability: The lock cylinder is mainly made of high-quality brass and has passed the 100,000-cycle test, offering corrosion resistance and long-term durability across a wide range of temperatures.
Functional Design: The double profile cylinder features a double-sided operating structure that can be operated by key on both sides. It is supplied with 3 keys and designed with a 15 mm cam rotation radius to provide smooth and effortless turning.

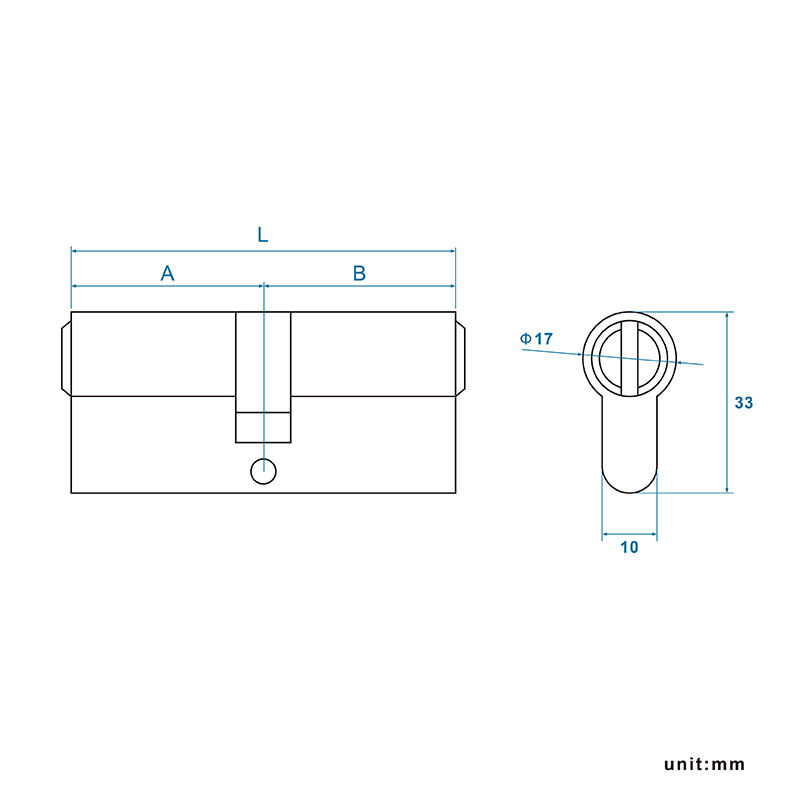

Flexible Compatibility: Manufactured according to DIN 18252 dimensional requirements and available in 60-95 mm lengths (60, 65, 70, 75, 80, 85, 90, 95), suitable for various door thicknesses. The keys are crafted from brass or nickel silver, supporting master key systems. OEM customization is available, including multiple surface finish processes and optional lengths.
Versatile Applications: Compatible with European mortise locks and suitable for hospitals, schools, commercial buildings, transport hubs, and other public facilities and engineering projects.
