CE Fire Rated Mortise Bathroom Toilet Door Lock
The Bathroom Mortise Lock is designed for public washroom doors, combining clear occupancy indicator, privacy protection and fire-door safety performance in compliance with EN 12209 and EN 1634-1 European standards.
With over a decade of expertise in architectural hardware, DIROCK is a specialized supplier of European-standard fire-rated hardware solutions.
Our manufacturing system is certified to ISO 9001 (Quality), ISO 14001 (Environment), and ISO 45001 (Occupational Health & Safety) standards, ensuring full traceability and consistent excellence from raw materials to finished products.
Technical Specifications
| PRODUCT DETAILS |
|---|
| Design Style |
EUROPEAN |
| Application |
Public buildings |
| Type |
Bathroom Mortise Lock-78ZWC |
| Feature |
Fire rated |
| Category of use |
Grade 3 |
| Material |
SS304 |
| Dimension |

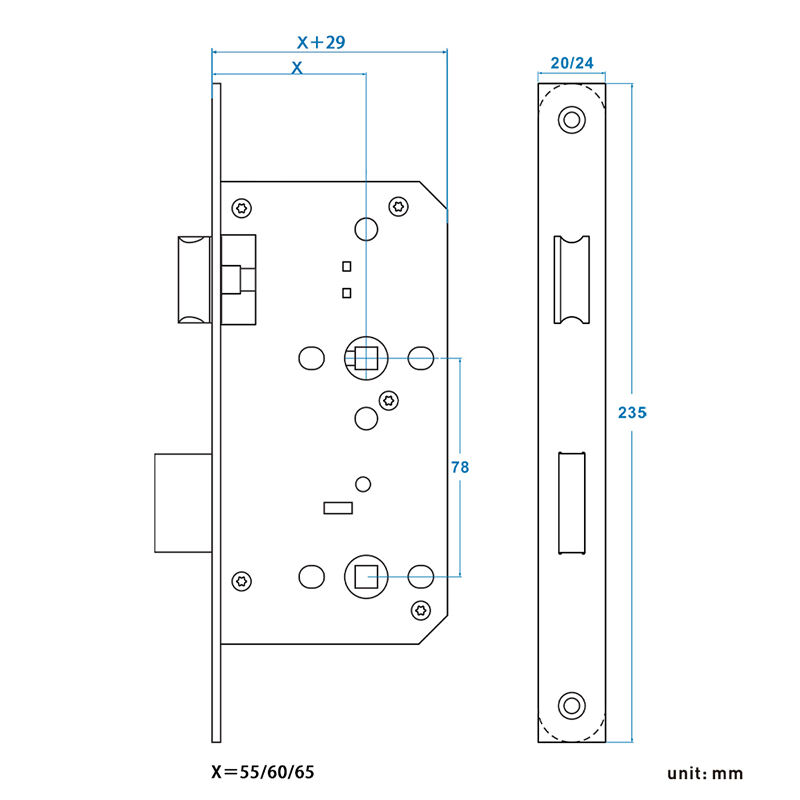

55/60/65mm(Backset); 78mm(Center distance) |
| Standard |
EN12209 EN1634-1 DIN18251 |

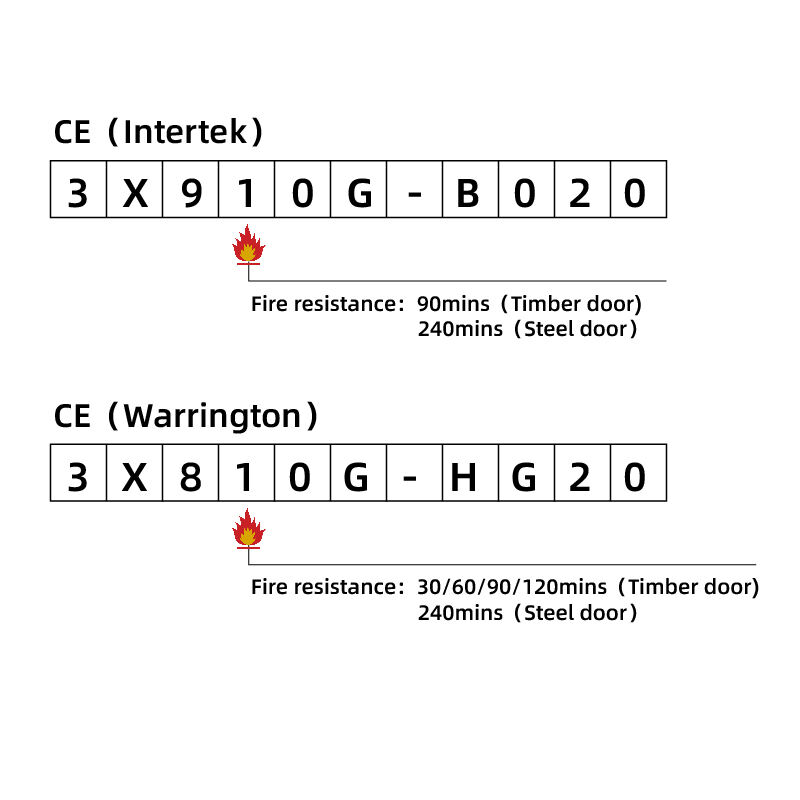

| CE (Intertek) |
3 X 9 1 0 G - B 0 2 0 |
| CE (Warrington) |
3 X 8 1 0 G - H G 2 0 |
| Fire test (Intertek) |
90mins(Timber door); 240mins(Steel door) |
| Fire test (Warrington) |
30/60/90/120mins(Timber door); 240mins(Steel door) |
| Production Capacity |
150,000 to 200,000 per month |
| After-sale Service |
Other |

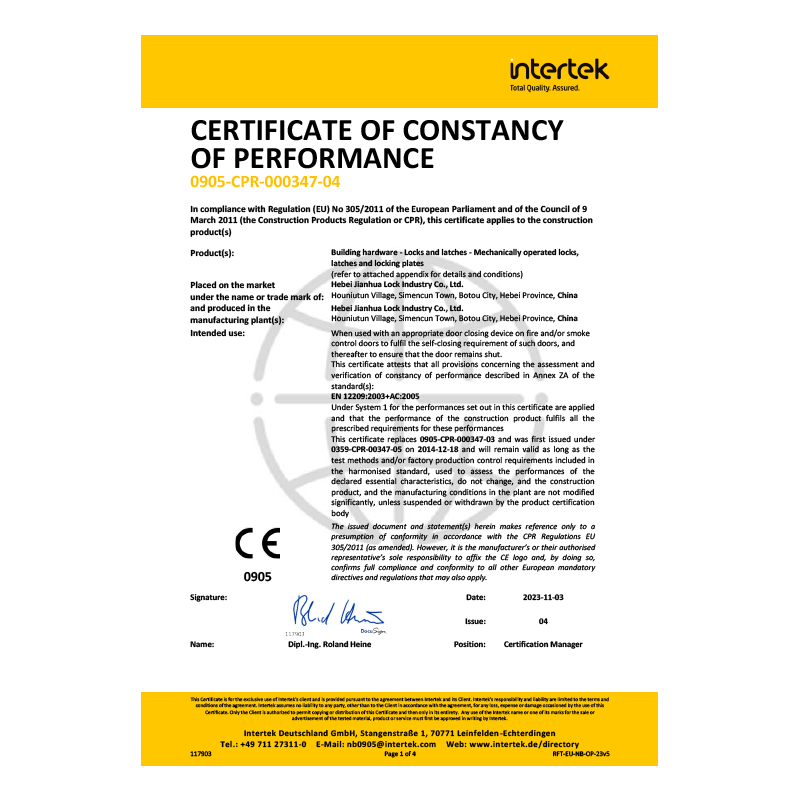

Tested and approved by Intertek and Warrington, this product is CE-marked and fully compliant with EN 1634-1 requirements for mechanical and fire performance.
Exceptional Durability: Key components such as the latch, follower, and deadbolt are made of 304 stainless steel. The latch has passed a 200,000-cycle test, and the deadbolt has passed a 50,000-cycle test, ensuring excellent corrosion resistance and long-term durability across various environments.
Functional Design：·Exterior: Operated by lever handle to control the latch; when locked, the indicator displays red. In emergencies, the deadbolt can be released using a coin or screwdriver.
·Interior: Operated by lever handle to control the deadbolt; operated by the indicator knob to control the deadbolt.
Flexible Compatibility: Reversible latch suitable for both left- and right-handed doors. Compatible with standard European lever handles, allowing for the addition of an occupancy indicator. Available in multiple models and backset distances options, with OEM customization supported.
Versatile Applications: Engineered for installation on both timber and steel fire doors, and suitable for bathroom doors, such as those in airports, hospitals, and office buildings.
