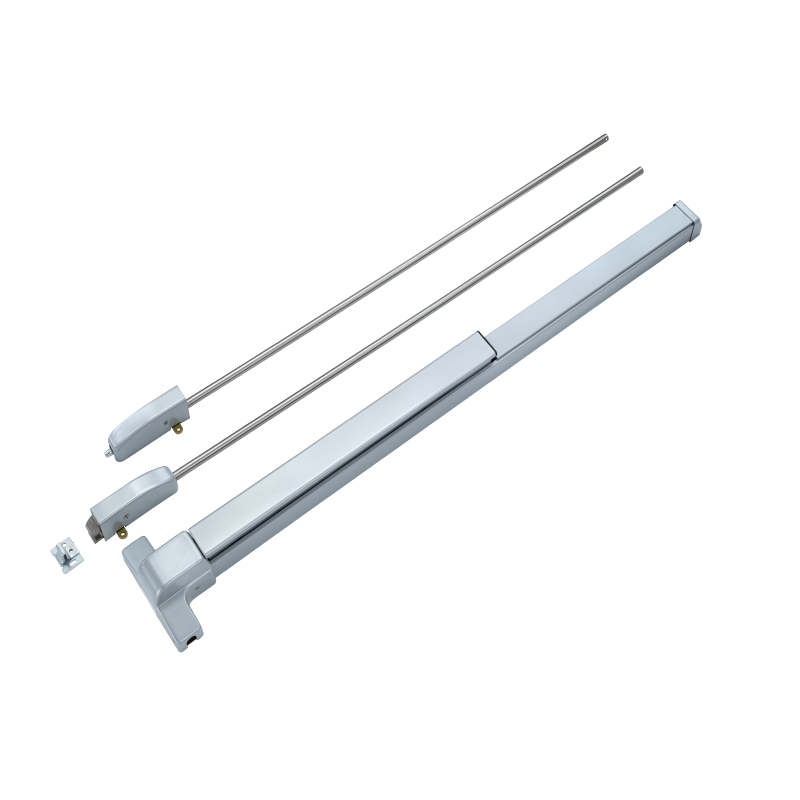

Rim Type Touch-Bar Panic Exit Device 560P/S
The Vertical Rod Rim Type Touch-Bar Panic Exit Device 560P / 560S is a surface-mounted emergency exit solution with a single-point locking mechanism, designed for emergency exit areas. It enables rapid single-action egress through a sensitive touch-bar operation, while integrating a top and bottom vertical rod system for enhanced door securing performance, in compliance with EN 1125 and EN 1634-1 European standards.
With over a decade of expertise in architectural hardware, DIROCK is a specialized supplier of European-standard fire-rated hardware solutions.
Our manufacturing system is certified to ISO 9001 (Quality), ISO 14001 (Environment), and ISO 45001 (Occupational Health & Safety) standards, ensuring full traceability and consistent excellence from raw materials to finished products.
Technical Specifications
| PRODUCT DETAILS |
|---|
| Design Style |
EUROPEAN |
| Application |
Public buildings |
| Type |
Rim Type Touch-Bar Panic Exit Device-560P/560S |
| Feature |
Fire rated |
| Category of use |
Grade 3 |
| Main Material |
SS304 |

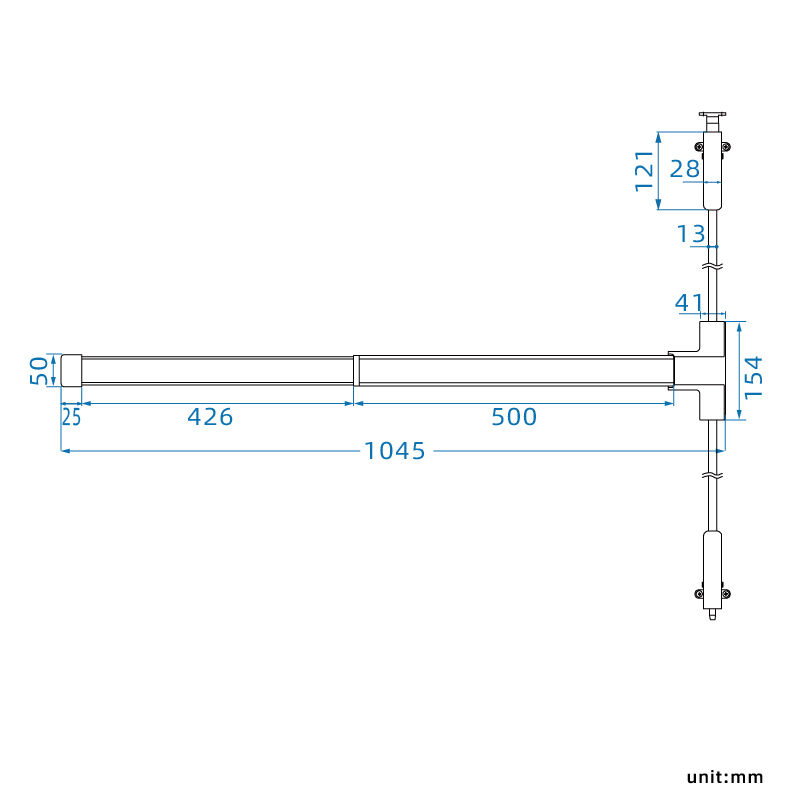

| Length |
1045mm, Customized (≥650mm) |
| Door height |
2100mm, Customized |
| Standard |
EN1125 EN1634-1 |

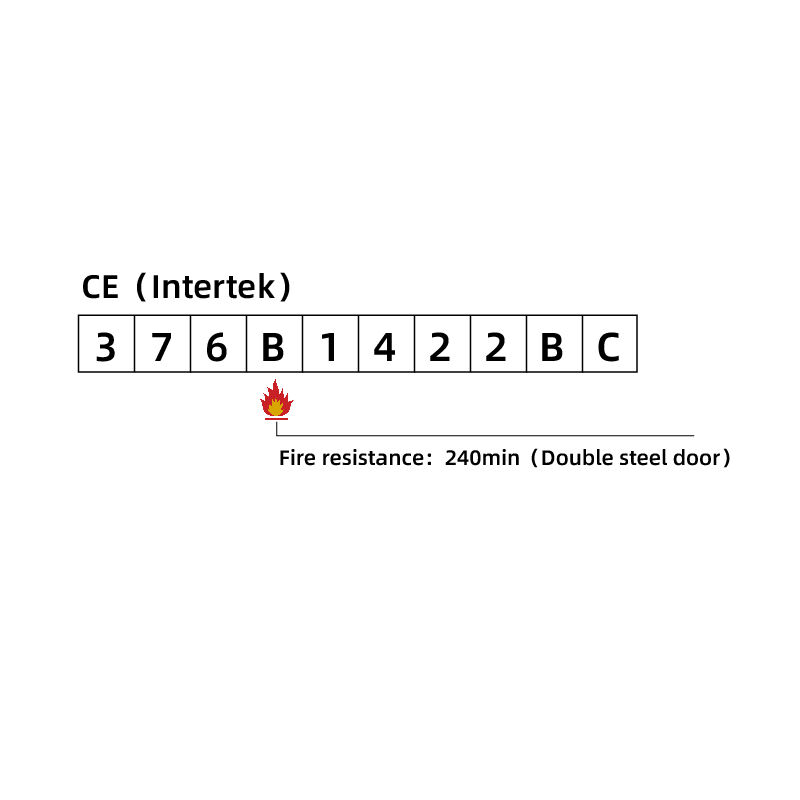

| CE (Intertek) |
3 7 6 B 1 4 2 2 B C |
| Fire test (EN1634-1) |
240mins(Double steel door) |
| Production Capacity |
100,000 per month |
| After-sale Service |
Other |
Tested and approved by Intertek, this product is CE-marked and compliant with EN 1125 and EN 1634-1 requirements, ensuring reliable performance within fire-rated door systems. Fire resistance is validated for up to 240 minutes on double steel doors.
Exceptional Durability: Key components such as the latch bolts, vertical rods, and internal transmission parts are made of 304 stainless steel. The touch bar is available in iron or 304 stainless steel (560P / 560S). The device has passed the 200,000-cycle test and is suitable for door leaf masses up to 200 kg, ensuring long-term reliability under high-frequency use. Multi-point locking with vertical rod structure enhances door stability and fire integrity, while effectively resisting lateral prying to improve security performance
Functional Design·Exterior: Typically not equipped with external trims or handles, as it is designed for the inactive leaf of double doors.
·Interior: The push bar allows simultaneous release of the top and bottom locking points with a light downward press. Operable from any point along the bar, it ensures fast and intuitive egress in emergency situations, with automatic re-latching upon release.
The operating force complies with EN 1125 requirements and is designed for enhanced ease of use, particularly suitable for a wide range of users including children and the elderly.
Flexible Compatibility: Non-handed design suitable for both left- and right-handed doors. Specifically designed for double doors (inactive leaf). Available in a standard length of 1045 mm, with customized options (≥650 mm). Suitable for door heights up to 2100 mm, with customization available.
Versatile Applications: Engineered for installation on steel fire doors. Ideal for high-occupancy buildings and public access environments such as hospitals, train stations, and offices, where enhanced door securing and code-compliant evacuation are essential.
