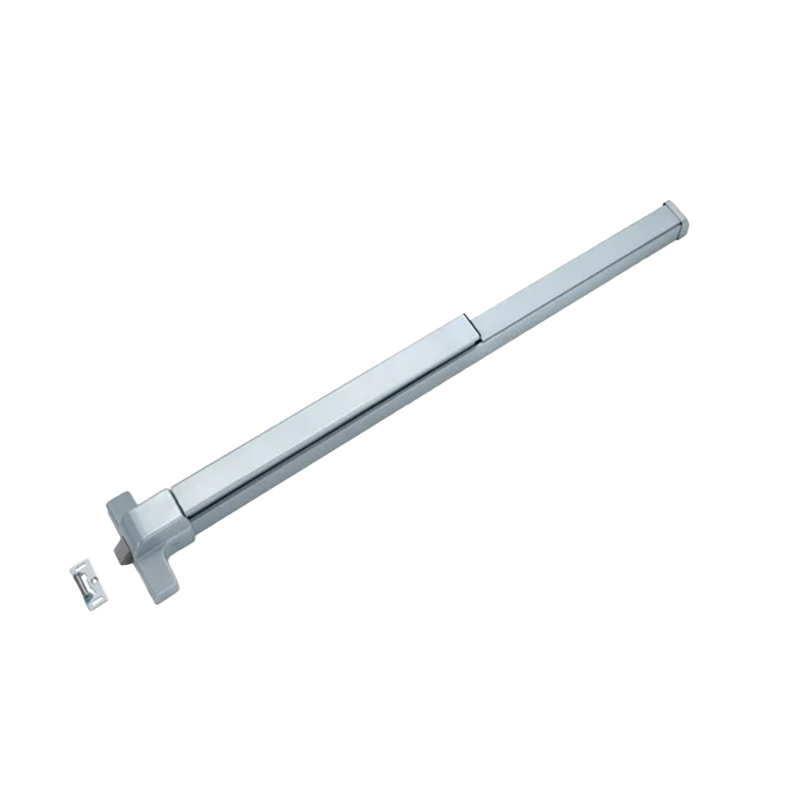

Rim Type Touch-Bar Panic Exit Device 500P/S
The Rim Type Touch-Bar Panic Exit Device 500P / 500S is a surface-mounted emergency exit solution with a single-point locking mechanism, designed for emergency exit areas.It enables rapid single-action egress through a sensitive touch-bar operation, allowing door release by pressing any point along the bar, combining reliable performance with user-friendly operation, in compliance with EN 1125 and EN 1634-1 European standards.
With over a decade of expertise in architectural hardware, DIROCK is a specialized supplier of European-standard fire-rated hardware solutions.
Our manufacturing system is certified to ISO 9001 (Quality), ISO 14001 (Environment), and ISO 45001 (Occupational Health & Safety) standards, ensuring full traceability and consistent excellence from raw materials to finished products.
Technical Specifications
| PRODUCT DETAILS |
|---|
| Design Style |
EUROPEAN |
| Application |
Public buildings |
| Type |
Rim Type Touch-Bar Panic Exit Device 500P / 500S |
| Feature |
Fire rated |
| Category of use |
Grade 3 |
| Main Material |
SS304 |

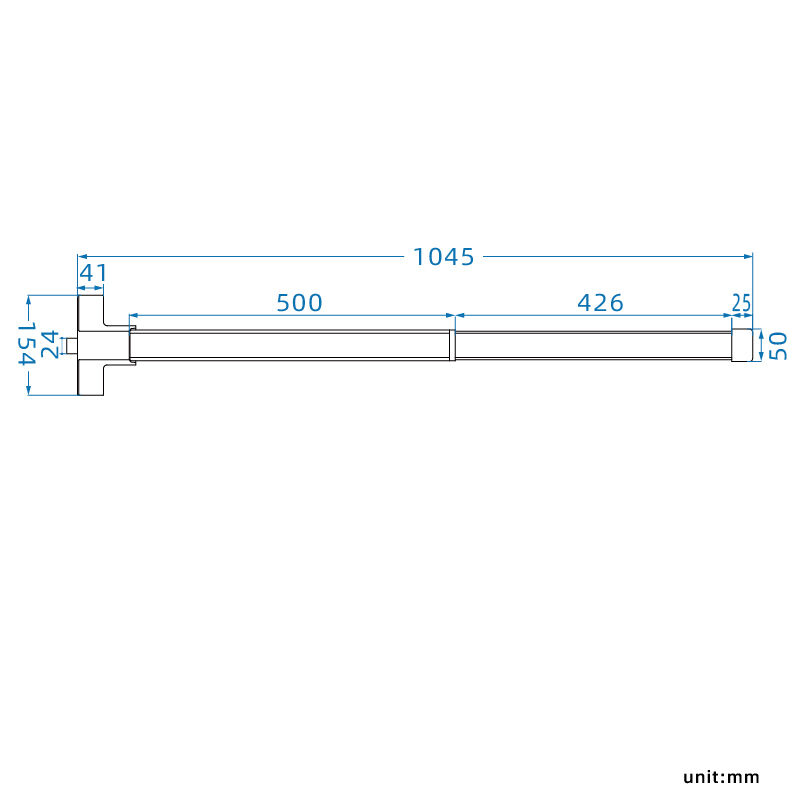

| Length |
1045mm, Customized (≥650mm) |
| Standard |
EN1125 EN1634-1 |

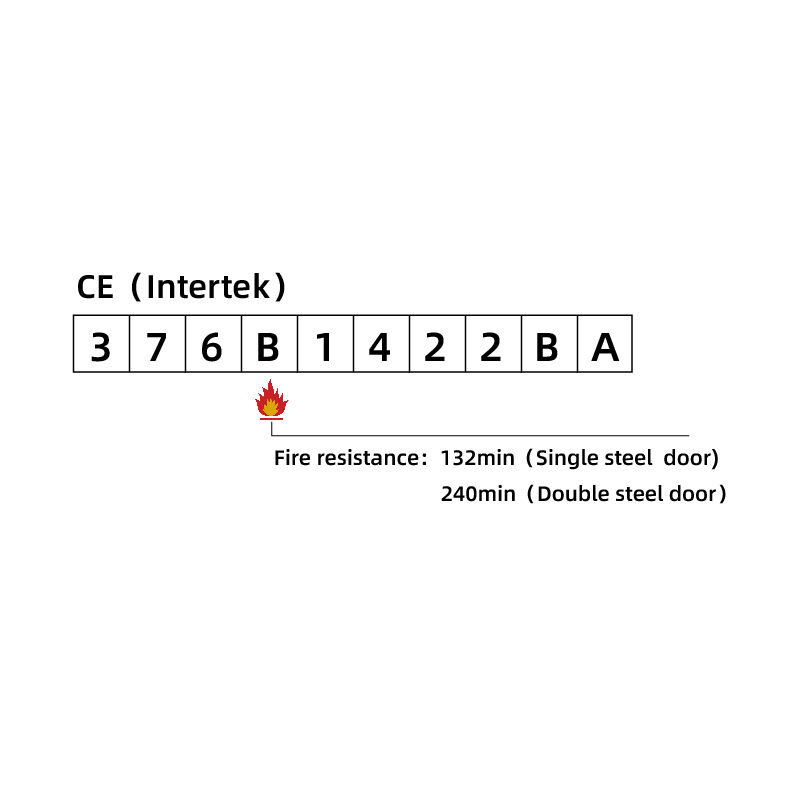

| CE (Intertek) |
3 7 6 B 1 4 2 2 B A |
| Fire test (EN1634-1) |
132mins(Single steel door); 240mins(Double steel door) |
| Production Capacity |
100,000 per month |
| After-sale Service |
Other |
Tested and approved by Intertek, this product is CE-marked and compliant with EN 1125 and EN 1634-1 requirements, ensuring reliable performance within fire-rated door systems. Fire resistance is validated for up to 132 minutes on single steel doors and 240 minutes on double steel doors.
Exceptional Durability: Key components such as the latch bolt and internal transmission parts are made of 304 stainless steel. The touch bar and keeper are available in iron or 304 stainless steel (500P / 500S). The device has passed the 200,000-cycle test and is suitable for door leaf masses up to 200 kg, ensuring long-term reliability under high-frequency use.
Functional Design·Exterior: Compatible with external trims or handles for controlled access from the outside, depending on project requirements.
·Interior: The touch bar allows immediate release of the latch with a light downward press.Operable from any point along the bar, it ensures fast and intuitive egress in emergency situations, with automatic re-latching upon release.
The operating force complies with EN 1125 requirements and is designed for enhanced ease of use, particularly suitable for a wide range of users including children and the elderly.
Flexible Compatibility: Non-handed design suitable for both left- and right-handed doors. Applicable to single doors and double doors (active or inactive leaf). Available in a standard length of 1045 mm, with customized options (≥650 mm). Compatible with a range of external trims, with OEM customization available.
Versatile Applications: Engineered for installation on steel fire doors. Ideal for high-occupancy buildings and public access environments such as shopping malls, schools, and hotels, where safe, efficient, and code-compliant evacuation is essential.
