CE Fireproof 60mm Backset Escape Mortise Door Lock
The Escape Mortise Lock is designed for familiar emergency exit areas, combining rapid emergency operation and fire safety performance in compliance with EN 179 and EN 1634-1 European standards.
With over a decade of expertise in architectural hardware, DIROCK is a specialized supplier of European-standard fire-rated hardware solutions.
Our manufacturing system is certified to ISO 9001 (Quality), ISO 14001 (Environment), and ISO 45001 (Occupational Health & Safety) standards, ensuring full traceability and consistent excellence from raw materials to finished products.
Technical Specifications
| PRODUCT DETAILS |
|---|
| Design Style |
EUROPEAN |
| Application |
Public buildings |
| Type |
Escape Mortise Lock-72ZE |
| Feature |
Fire rated |
| Category of use |
Grade 3 |
| Material |
SS304 |

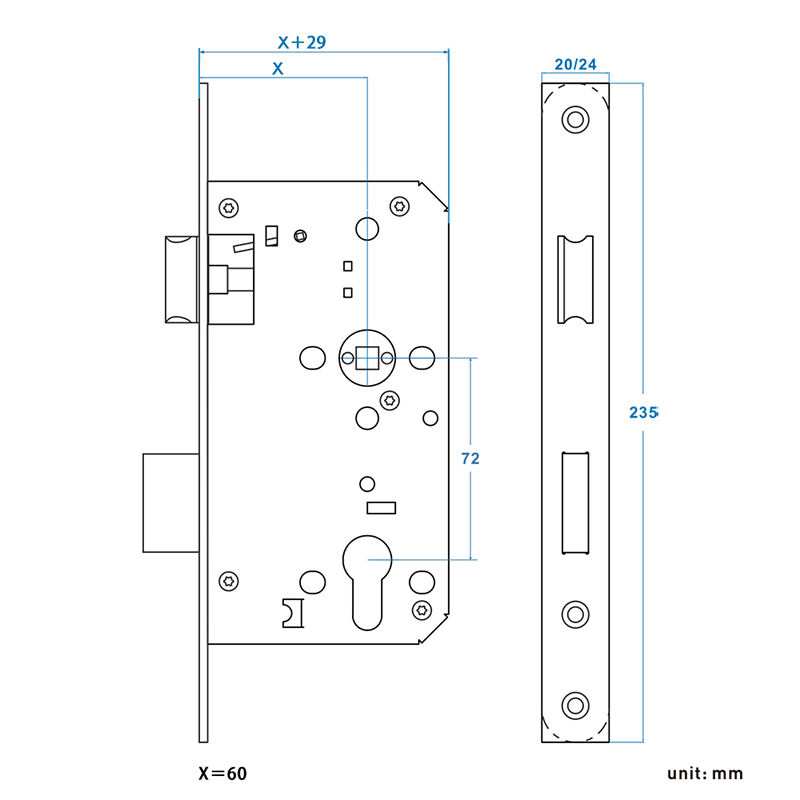

| Dimension |
60mm(Backset); 72mm(Center distance) |
| Standard |
EN179 EN1634-1 DIN18251 |

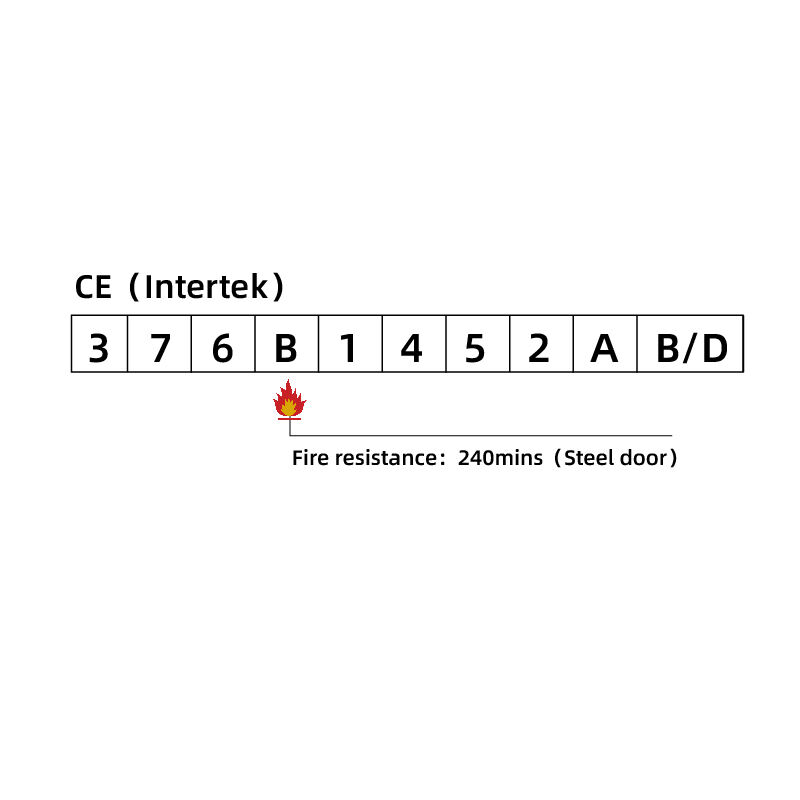

| CE (EN 179) |
3 7 6 B 1 4 5 2 A B/D |
| Fire test |
240mins(Steel door) |
| Production Capacity |
150,000 to 200,000 per month |
| After-sale Service |
Other |

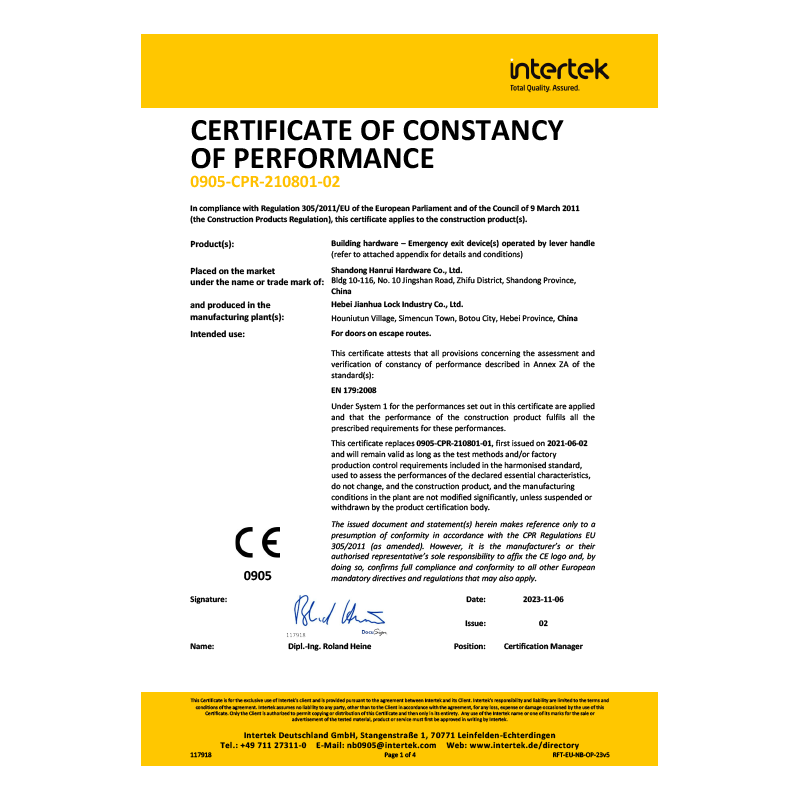

Tested and approved by Intertek, this product is CE-marked and fully compliant with EN 1634-1 requirements for mechanical and fire performance.
Exceptional Durability: Key components such as the latch, follower, and deadbolt are made of 304 stainless steel. The latch has passed a 200,000-cycle test, and the deadbolt has passed a 50,000-cycle test, ensuring long-term reliable operation in emergency conditions.
Functional Design：·Exterior: Operated by key to control the deadbolt.
·Interior: Operated by handle to retract the latch; in emergency, a single press of the handle simultaneously retracts the latch and deadbolt for emergency exit.
Flexible Compatibility: Reversible latch suitable for both left- and right-handed doors. Compatible with standard European lever handles and profile cylinders, with OEM customization supported.
Versatile Applications: Engineered for installation on steel fire doors, and suitable for emergency exit doors in familiar areas, such as offices, warehouses, and school stairwells.
