Fire Rated 70mm Toilet Profile Cylinder for Bathroom Single Open European Door Lock Cylinder
The Toilet Profile Cylinder is engineered for professional building projects, combining superior fire resistance and long-term durability in compliance with EN 1303 standards.
With over a decade of expertise in architectural hardware, DIROCK is a specialized supplier of European-standard fire-rated hardware solutions.
Our manufacturing system is certified to ISO 9001 (Quality), ISO 14001 (Environment), and ISO 45001 (Occupational Health & Safety) standards, ensuring full traceability and consistent excellence from raw materials to finished products.
Technical Specifications
| PRODUCT DETAILS |
|---|
| Design Style |
EUROPEAN |
| Application |
Public buildings |
| Type |
Toilet Profile Cylinder 60-95mm |
| Feature |
Fire rated |
| Section |

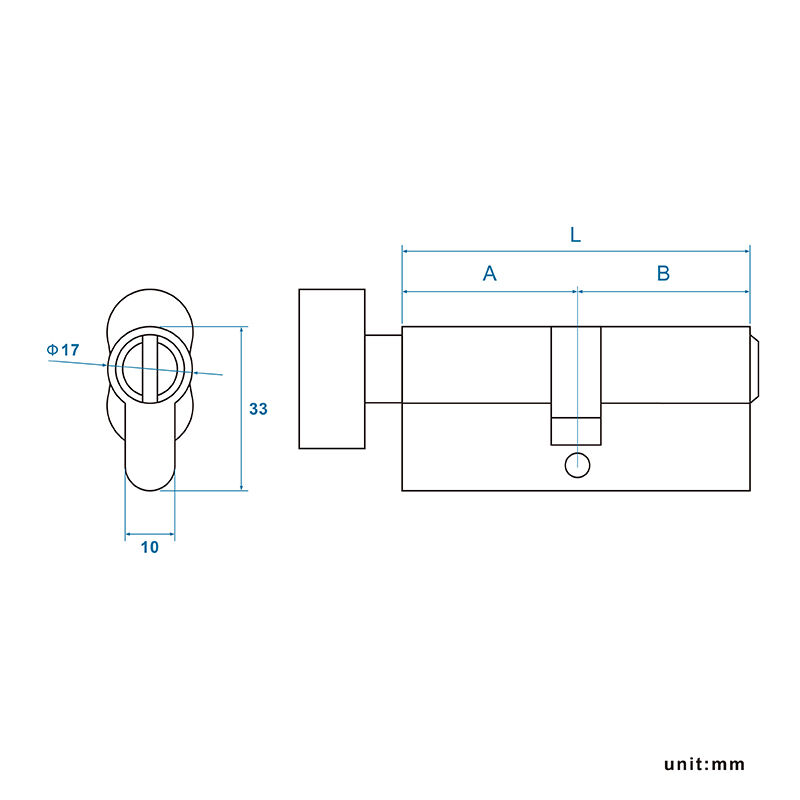

∅17*33*10mm |
| Main material |
Brass |
| Cam |
Sintered steel, R15*6.5 |
| Spring |
SS 304 |
| Standard |
EN1303, EN1634-1, DIN18252 |
| Production Capacity |
100,000 per month |
| After-sale Service |
Other |
The brass cylinder meets the mechanical and fire performance of EN 1634-1. Featured a 30° offset cam design for reinforced security.
Exceptional Durability: The lock cylinder is mainly made of high-quality brass, offering corrosion resistance and long-term durability.
Functional Design: The toilet profile cylinder features a single-sided operating structure that can be operated knob on the one side, while the other side features an emergency release slot that can be opened from outside with a coin or screwdriver. It is designed with a 15 mm cam rotation radius to provide smooth and effortless turning.
Flexible Compatibility: Manufactured according to DIN 18252 dimensional requirements and available in 60-95 mm lengths (60, 65, 70, 75, 80, 85, 90, 95), suitable for various door thicknesses. OEM customization is available, including multiple surface finish processes and optional thumbturn configurations.
Versatile Applications: Compatible with European mortise locks and suitable for hospitals, schools, commercial buildings, transport hubs, and other public facilities and engineering projects.
