Euro Mortise Framen Lock 92mm Center Distance Narrow Mortise Door Lock
The Mortise Frame Lock is designed for modern architectural applications, offering reliability, flexibility, and performance in a compact narrow-body design.
With over a decade of expertise in architectural hardware, DIROCK is a specialized supplier of European-standard fire-rated hardware solutions.
Our manufacturing system is certified to ISO 9001 (Quality), ISO 14001 (Environment), and ISO 45001 (Occupational Health & Safety) standards, ensuring full traceability and consistent excellence from raw materials to finished products.
Technical Specifications
| PRODUCT DETAILS |
|---|
| Design Style |
EUROPEAN |
| Application |
Public buildings |
| Type |
Mortise Frame Lock-92Z |
| Main Material |
SS304 |
| Bolt |
Zamak 5 |

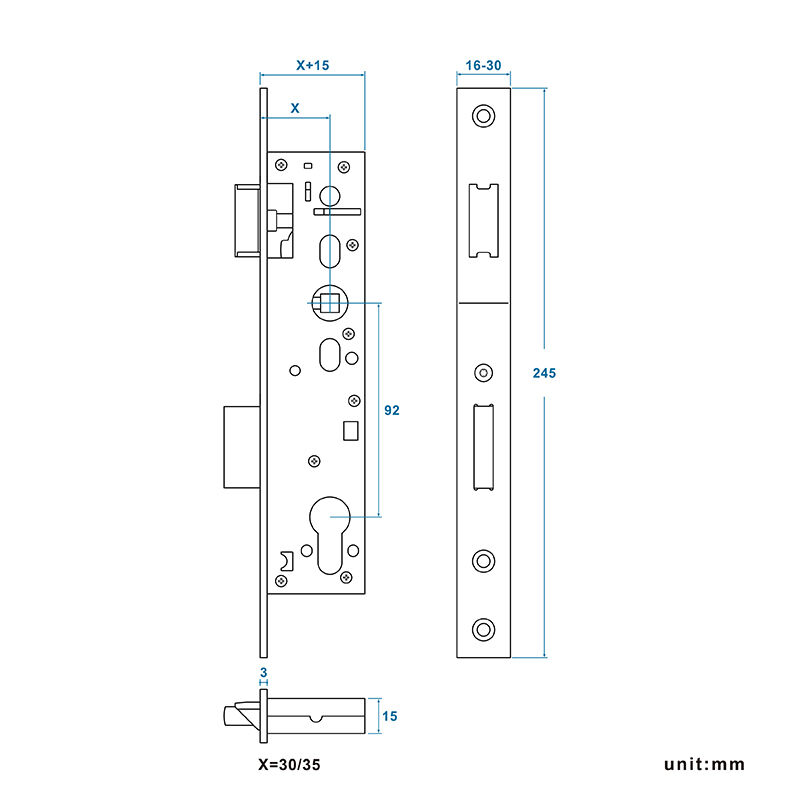

| Dimension |
30/35mm(Backset); 92mm(Center distance) |
| Standard |
EN12209 DIN18251 |
| Production Capacity |
150,000 to 200,000 per month |
| After-sale Service |
Other |
Operated by key to control the deadbolt.
·Interior: Operated by handle or thumbturn to retract both latch and deadbolt simultaneously.
Flexible Compatibility: Reversible latch suitable for both left- and right-handed doors.Compatible with standard European lever handles and profile cylinders. Available in multiple models and backset distances options, with OEM customization supported.
Versatile Applications: Suitable for various environments such as hotels, offices, hospitals, and diverse building, the 92Z Narrow Mortise Lock delivers consistent function and durability even in compact door systems.
