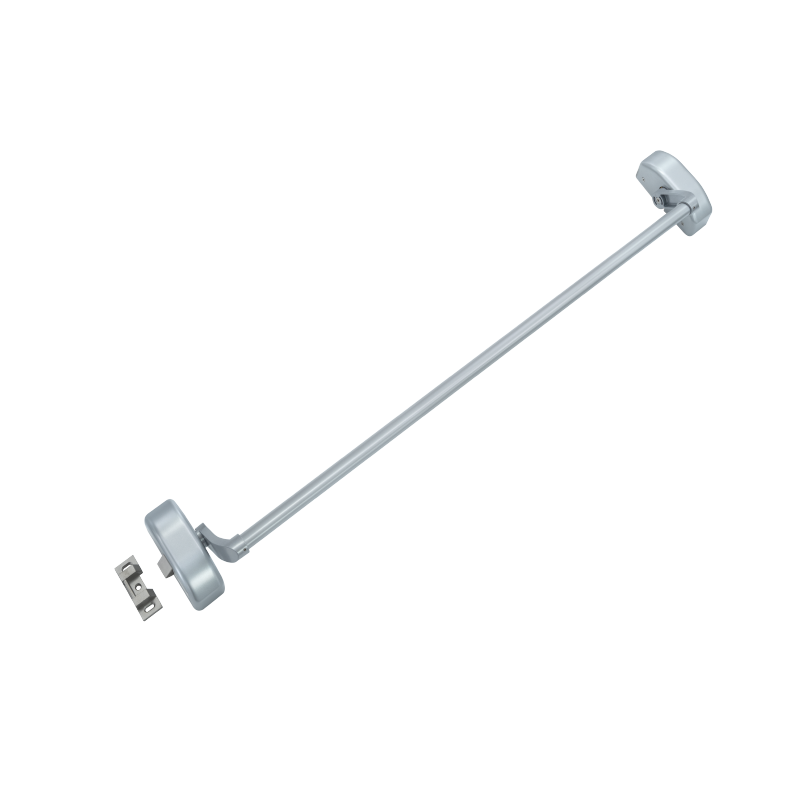

Rim Type Push-bar Panic Exit Device 350P/S
The Rim Type Push-Bar Panic Exit Device 350P / 350S is a surface-mounted emergency exit solution with a single-point locking mechanism, designed for emergency exit areas. It enables rapid single-action egress through an intuitive push-bar operation, combining robust structural performance with stable transmission, in compliance with EN 1125 and EN 1634-1 European standards.
With over a decade of expertise in architectural hardware, DIROCK is a specialized supplier of European-standard fire-rated hardware solutions.
Our manufacturing system is certified to ISO 9001 (Quality), ISO 14001 (Environment), and ISO 45001 (Occupational Health & Safety) standards, ensuring full traceability and consistent excellence from raw materials to finished products.
Technical Specifications
| PRODUCT DETAILS |
|---|
| Design Style |
EUROPEAN |
| Application |
Public buildings |
| Type |
Rim Type Push-Bar Panic Exit Device-350P/350S |
| Feature |
Fire rated |
| Category of use |
Grade 3 |
| Main Material |
SS304 |
| Length |
1054mm, Customized |
| Standard |
EN1125 EN1634-1 |

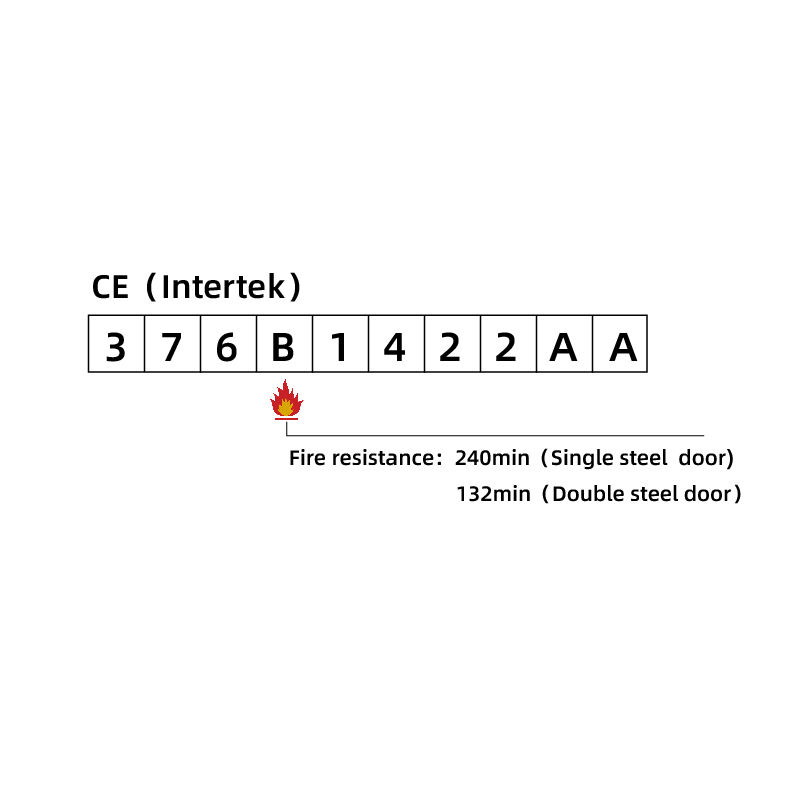

| CE (Intertek) |
3 7 6 B 1 4 2 2 A A |
| Fire test (EN1634-1) |
240mins(Single steel door); 132mins(Double steel door) |
| Production Capacity |
100,000 per month |
| After-sale Service |
Other |

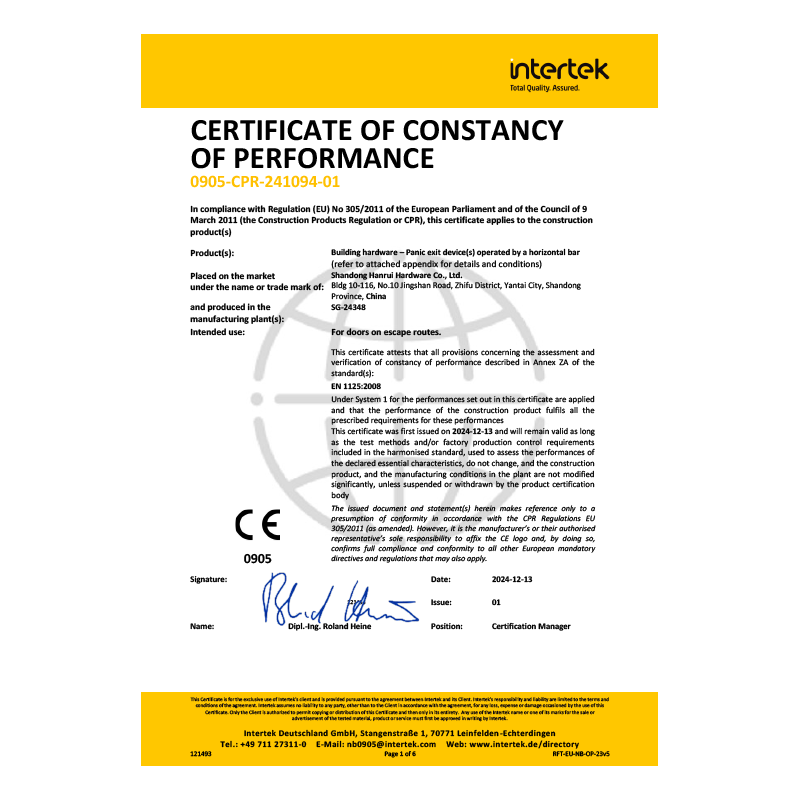

Tested and approved by Intertek, this product is CE-marked and compliant with EN 1125 and EN 1634-1 requirements, ensuring reliable performance within fire-rated door systems. Fire resistance is validated for up to 240 minutes on single steel doors and 132 minutes on double steel doors.
Exceptional Durability: Key components such as the latch bolt, keeper, and internal transmission parts are made of 304 stainless steel. The push bar is available in iron or 304 stainless steel (350P / 350S). The device has passed the 200,000-cycle test and is suitable for door leaf masses up to 200 kg, ensuring long-term reliability under high-frequency use.
Functional Design·Exterior: Compatible with external trims or handles for controlled access from the outside, depending on project requirements.
·Interior: The push bar allows immediate release of the latch with a single horizontal push. Operable from any point along the bar, it ensures fast and intuitive egress in emergency situations, with automatic re-latching upon release.
The operating force complies with EN 1125 requirements and is designed for ease of use across all user groups, including children and the elderly.

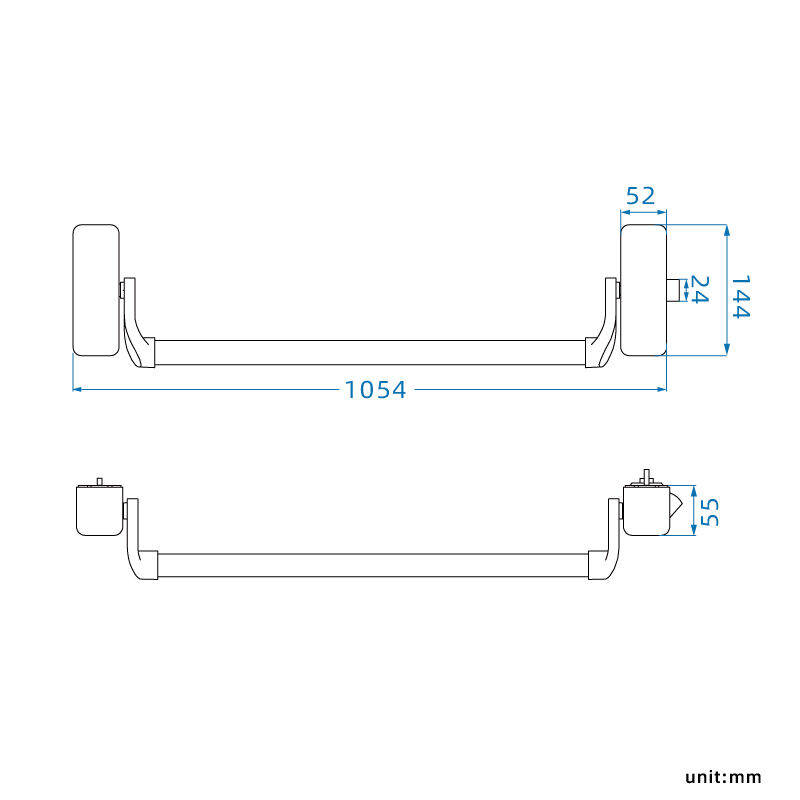

Flexible Compatibility: Non-handed design suitable for both left- and right-handed doors. Applicable to single doors and double doors (active or inactive leaf). Available in a standard length of 1054 mm, with customized dimensions supported. Compatible with a range of external trims, with OEM customization available for specific project needs.
Versatile Applications: Engineered for installation on steel fire doors. Ideal for high-occupancy buildings and public access environments such as commercial facilities, transportation hubs, and institutional buildings, where safe, efficient, and code-compliant evacuation is essential.
